Issue in generating access token

Hello, I faced many issues in generating access token

First, I have here access code generated <REDACTED>

Second trying to execute this curl :

curl https://api.dropbox.com/oauth2/token \     -d code=<REDACTED> \     -d grant_type=authorization_code \     -d redirect_uri=https://api.dropbox.com/oauth2/token \     -u <REDACTED>

It prints every time :
{
"error": "invalid_grant",
"error_description": "redirect_uri mismatch"
}

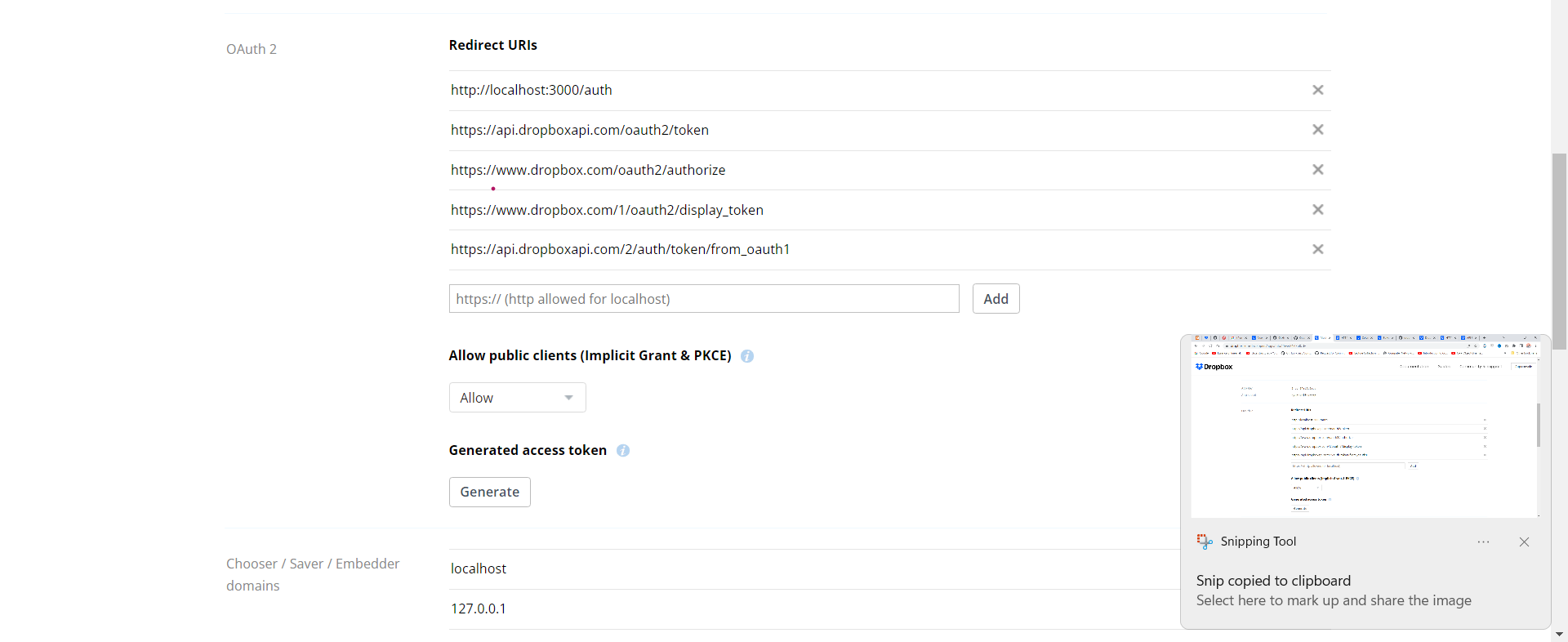

However I have here the redirected links

Find more posts tagged with

API

Abuse

Accepted answers

Здравко

Hi @Mostafa Ezzat,

Let's try some authentication process step by step. 🙂 It may succeed.

At the beginning make sure you have your App key and App secret at hand from App Console page. Select desired application there and once got there in and scroll to field "App key" and "App secret" (for the secret "Show" should be used) keep the browser window accessible, so would be able take a look there when needed.

Next, open a new browser window and put into address line following:

https://www.dropbox.com/oauth2/authorize?token_access_type=offline&response_type=code&client_id=<App key>

Where "<App key>" is the one from you previous browser window. Next the confirmation you will get a code (alphanumeric sequence). The same could be received automatic when redirect URL is in use (either direct or PKCE code flow), but here we will perform it in such a way for clarity.

Next step will be to "materialize" the received code. In a terminal window execute following curl command:

curl https://api.dropbox.com/oauth2/token -d code=<received code> -d grant_type=authorization_code -u <App key>:<App secret>

Where "<received code>" is the code shown up in the second browser window after confirmation. "<App key>" and "<App secret>" come from the first browser window. As a result you will get in your terminal something like:

{"access_token": "sl.abcdefg123456789AbCdEf-GHijKLmn0U", "token_type": "bearer", "expires_in": 14400, "refresh_token": "oDfT54975DfGh12345KlMnOpQrSt01a", "scope": "account_info.read files.content.read etc.", "uid": "123456789", "account_id": "dbid:ABCDEF5g8HijklMNopQ2Rs5tUV_wxy5z_YO4"}

Of course, you will receive different values filling the pattern. Here "sl.abcdefg123456789AbCdEf-GHijKLmn0U" is access token you can use in every regular API call for "14400" second since current moment until expires. "oDfT54975DfGh12345KlMnOpQrSt01a" is your refresh token. The one that will never expire (or till revoke).

When currently received access token expires, you can perform following curl call:

curl https://api.dropbox.com/oauth2/token -d grant_type=refresh_token -d refresh_token=oDfT54975DfGh12345KlMnOpQrSt01a -u <App key>:<App secret>

Where "oDfT54975DfGh12345KlMnOpQrSt01a" is the refresh token "materialized" from code at the beginning. "<App key>" and "<App secret>" come again from the first browser window. As a result you will get in your terminal something like:

{"access_token": "sl.abcdefg123456789AbCdEf-OPqrSTuv1W", "token_type": "bearer", "expires_in": 14400}

Again "sl.abcdefg123456789AbCdEf-OPqrSTuv1W" is an access token usable in regular API calls for "14400" seconds (i.e. 4 hours). The last call need to be used every time you need valid access token and the previous one got expired. For the test here you don't have to wait 4 hours. You can call it immediately. 😉 Completes everything successfully?

Every time you do receive access token, it can be use for as many seconds as denoted in "expires_in" field. The access token itself is a ASCII chars sequence and you should be ready to process such a sequence as presented (including different length).

Hope this gives direction and clarifies matter with the step by step processing.

All comments

Здравко

@chibyk101, Try something more simple before jump into the deep (redirect URL). Take a look at this thread beginning. Make sure you can do as noted in solution and after that try experimenting. 😉

Good luck.
